Starter Installation Note (ATX)
WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:

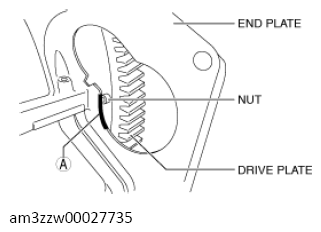

- Do not overlap the starter with the end plate (area A shown in illustration) when installing. If the starter is not correctly installed, the nut installed to the drive plate may contact the end plate causing abnormal noise.
 Courtesy of MAZDA MOTORS CORP.
|
