Starter Disassembly/Assembly

WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.

Disassemble in the order indicated in the table.

Assemble in the reverse order of disassembly.

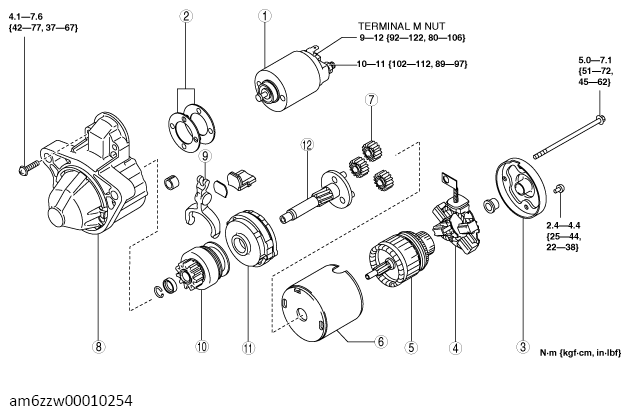

Fig 1: Starter Components With Torque Specification (SKYACTIV-G, Without Cylinder Deactivation, US)

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

1	Magnetic switch
2	Adjustment washer
3	Rear housing
4	Brush and brush holder
5	Armature
6	Yoke
7	Planetary gear
8	Front cover
9	Lever
10	Drive pinion
11	Internal gear
12	Gear shaft
