Nothing Indicated On Active Driving Display: Outline

WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.

NOTHING INDICATED ON ACTIVE DRIVING DISPLAY [ACTIVE DRIVING DISPLAY] DETECTION CONDITION AND POSSIBLE CAUSE

Description	When the ignition is switched ON (engine off or on), nothing is indicated on the active driving display.

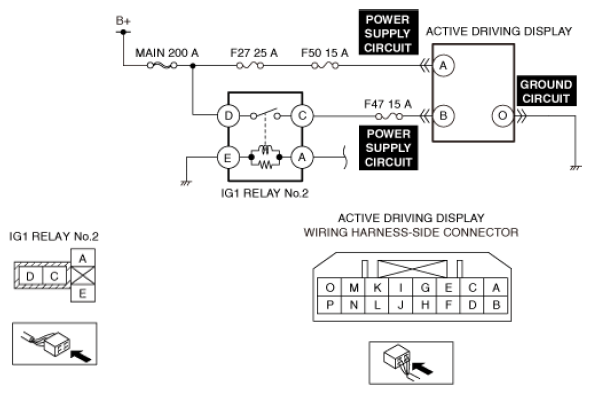

Possible cause	Active driving display connector or terminal malfunction Short to ground or open circuit in active driving display power supply circuit Open circuit in active driving display ground circuit Active driving display malfunction
Courtesy of MAZDA MOTORS CORP.
