DTC U3004-17: Acc Relay Circuit Malfunction (BCM) (Us): Outline

WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.

DTC U3004:17 (BCM) (US) DETECTION CONDITION AND POSSIBLE CAUSE

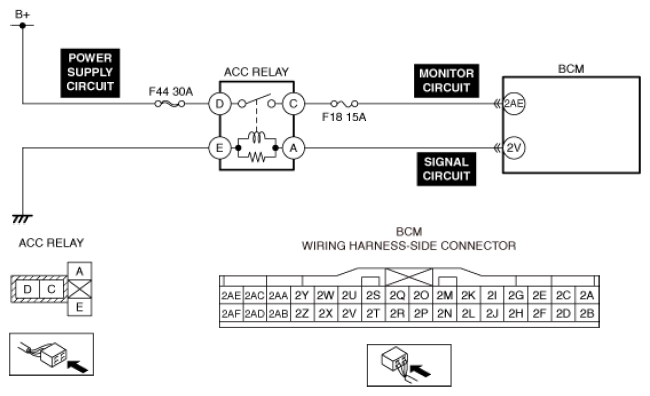

System malfunction location	ACC relay circuit malfunction
Detection condition	The body control module (BCM) detects that the ACC monitor voltage is higher than the standard. Preconditions The ignition switched off.
Fail-safe	Not applicable
Possible cause	ACC relay malfunction Body control module (BCM) connector or terminal malfunction Short to power supply in ACC relay monitor circuit Body control module (BCM) malfunction
Courtesy of MAZDA MOTORS CORP.
