DTC U2610-14: Active Driving Display (Add) Power Supply Circuit Malfunction (BCM): Outline

WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.

DTC U2610:14 (BCM) DETECTION CONDITION AND POSSIBLE CAUSE

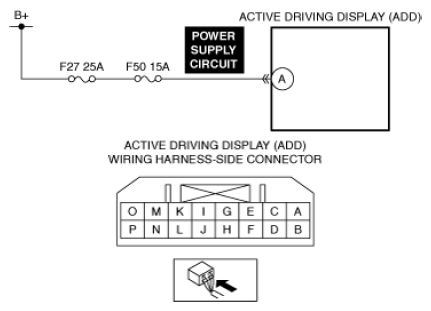

System malfunction location	Active Driving Display (ADD) power supply circuit malfunction
Detection condition	The Active Driving Display (ADD) detects an open circuit or short to ground in the power supply circuit.
Fail-safe	Not applicable
Possible cause	Active Driving Display (ADD) connector or terminal malfunction Short to ground or open circuit in Active Driving Display (ADD) power supply circuit Active Driving Display (ADD) malfunction Body control module (BCM) malfunction
Courtesy of MAZDA MOTORS CORP.
