DTC U260B-14: Instrument Cluster Power Supply Circuit Malfunction (BCM) (Us): Outline

WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.

DTC U260B:14 (BCM) (US) DETECTION CONDITION AND POSSIBLE CAUSE

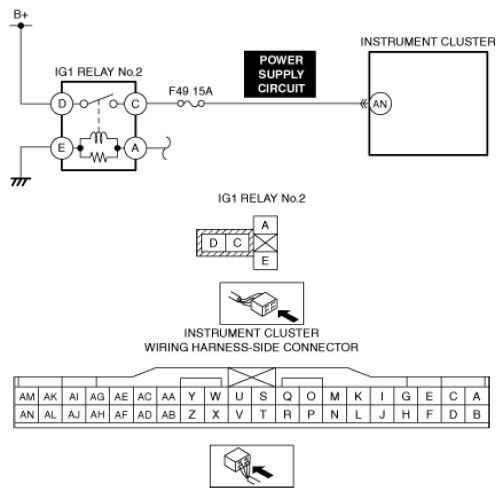

System malfunction location	Instrument cluster power supply circuit malfunction
Detection condition	The instrument cluster detects an open circuit or short to ground in the power supply circuit.
Fail-safe	Not applicable
Possible cause	IG1 relay No. 2 malfunction Instrument cluster connector or terminal malfunction Short to ground or open circuit in instrument cluster power supply circuit Instrument cluster malfunction Body control module (BCM) malfunction
Courtesy of MAZDA MOTORS CORP.
