Bead Breaking Note (Method for Securing Wheel)

WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.

Install the wheel and tire to the bead breaker.

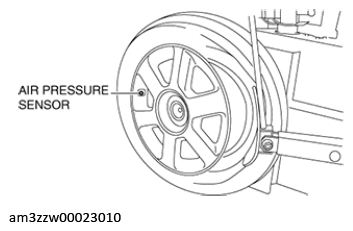

Set the bead breaker against the air pressure sensor as shown in the illustration.

Courtesy of MAZDA MOTORS CORP.
CAUTION:
- Do not set the bead breaker outside of the area shown in the illustration to prevent damaging the air pressure sensor.

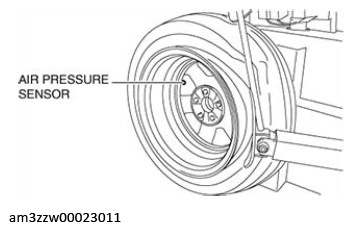

Break the upper bead.

Courtesy of MAZDA MOTORS CORP.
Break the lower bead.

Courtesy of MAZDA MOTORS CORP.
When replacing a wheel unit(s), register the new wheel unit ID(s).
