Bead Breaking Note (Method for Rotating Wheel Against Bead Breaker)

WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.

Install the wheel and tire to the turntable of the tire changer.

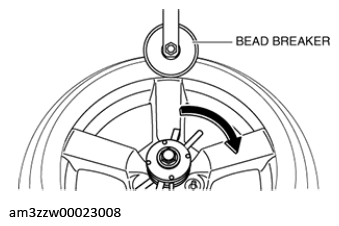

Set the bead breaker against the air pressure sensor as shown in the illustration.

Courtesy of MAZDA MOTORS CORP.
CAUTION:
- Do not set the bead breaker outside of the area shown in the illustration to prevent damaging the air pressure sensor.
Rotate the wheel and break the upper/lower bead.

Courtesy of MAZDA MOTORS CORP.

CAUTION:

Do not move the air pressure sensor outside of the area shown in the illustration to prevent damaging the air pressure sensor.
