Wheel And Tire Installation

WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.
  1. When installing the wheels and tires, tighten the wheel nuts to the following tightening torque in the order shown in the illustration.

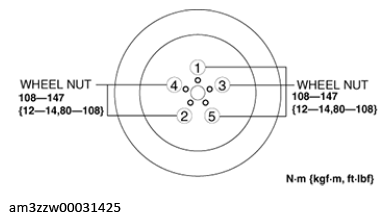

Fig 1: Wheel Nuts Tightening Sequence
G13175602Courtesy of MAZDA MOTORS CORP.
