Oil Pump Driven Sprocket Installation Note (SKYACTIV-G 2.0)

WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.

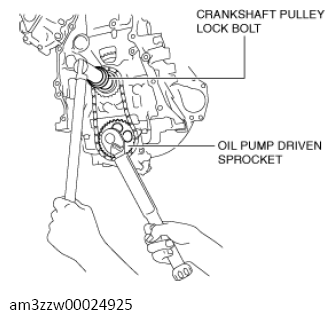

  1. Temporarily assemble the crankshaft pulley lock bolt, and lock the oil pump against rotation as shown in the illustration.
    G13556595Courtesy of MAZDA MOTORS CORP.
  2. Install the oil pump driven sprocket.
  3. Remove the temporarily assembled crankshaft pulley lock bolt.
