Rear Oil Seal Installation Note: Notes
WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.
- Apply clean engine oil to the inner surface of a new rear oil seal.
- Insert the rear oil seal into the cylinder block by hand.
- Tap the rear oil seal in evenly using the SST and a hammer.

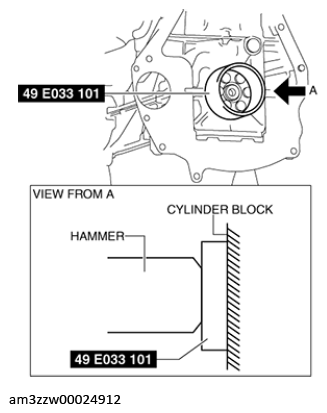

SKYACTIV-G 2.0
 Courtesy of MAZDA MOTORS CORP.
|

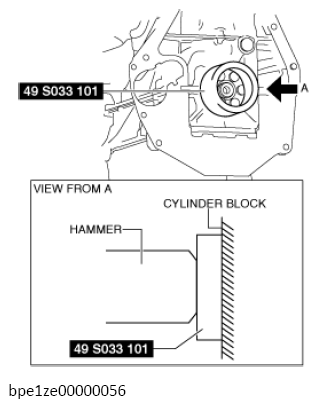

SKYACTIV-G 2.5
 Courtesy of MAZDA MOTORS CORP.
|

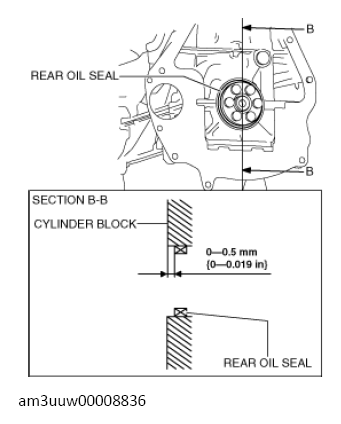

 Courtesy of MAZDA MOTORS CORP.
|
