Rear Oil Seal Replacement: Notes

WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.

Special Service Tool (SST)

49 E033 101
Dust cover installer [SKYACTIV-G 2.0]

Courtesy of MAZDA MOTORS CORP.

49 S033 101
Dust cover installer [SKYACTIV-G 2.5]

Courtesy of MAZDA MOTORS CORP.

Replacement Part

Rear oil seal

Quantity: 1

Location of use: Cylinder block

Oil and Chemical Type

Engine oil

Type: Recommended oil

Remove the transaxle. (See AUTOMATIC TRANSAXLE REMOVAL/INSTALLATION (ET6A-EL) (US) .)
Remove the flywheel (MTX) or the drive plate (ATX). (See DRIVE PLATE REMOVAL/INSTALLATION .)

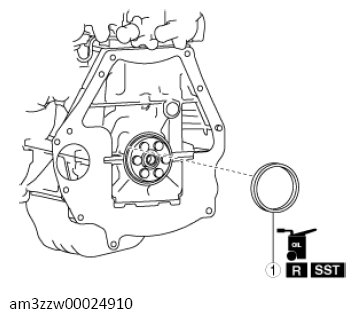

Remove in the order indicated in the table.

Install in the reverse order of removal.

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

1	Rear oil seal (See REAR OIL SEAL REMOVAL NOTE .) (See REAR OIL SEAL INSTALLATION NOTE .)
