Plug Hole Plate Removal/Installation: Removal
WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.

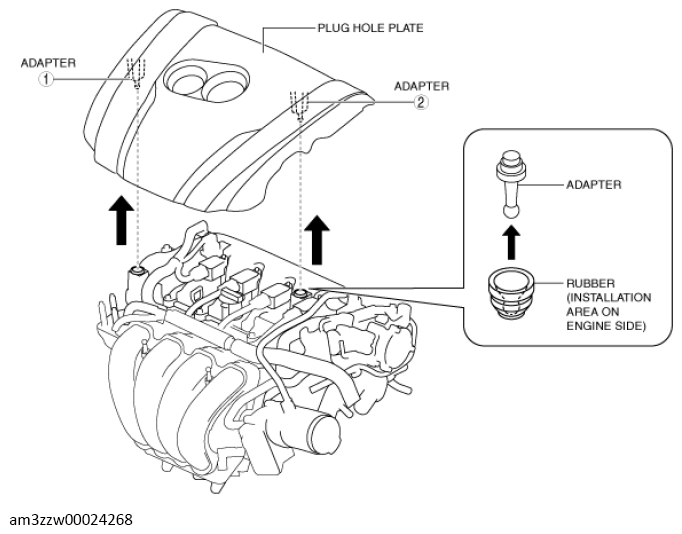

- Pull up the front part of the plug hole plate at the same time and remove the rubber from the adapter on the engine side.
 Courtesy of MAZDA MOTORS CORP.
|

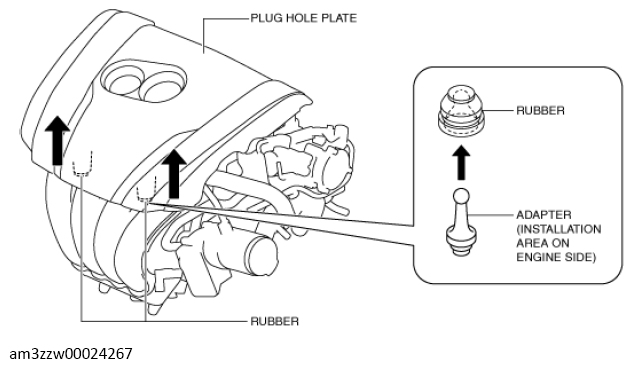

- Pull up the plug hole plate in the order shown in the illustration and remove the adapter from the rubber on the engine side.
 Courtesy of MAZDA MOTORS CORP.
|
