No. 3 engine mount installation note

WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
  • When replacing the No. 3 engine mount, place a mark at the same position as the one placed be for removal.
  • If the No. 3 engine mount nut is loosened, tighten the engine front cover stud bolts because they may have loosened.
  1. Tighten the engine front cover stud bolts.
    Fig 1: Engine Front Cover Stud Bolts With Torque Specification
    G13556449Courtesy of MAZDA MOTORS CORP.
  2. Temporarily tighten the No. 3 engine mount installation bolts and nuts using the following procedure:
    1. Align the alignment marks on the body side and No. 3 engine mount, and temporarily tighten the bolts shown in the illustration.

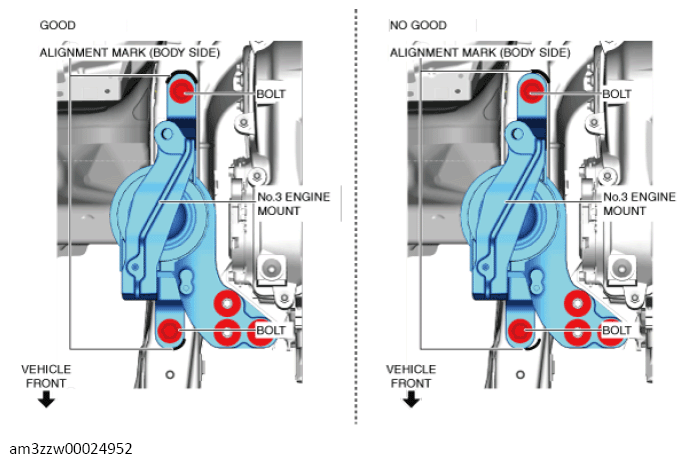

      G13556450Courtesy of MAZDA MOTORS CORP.
    2. Temporarily tighten the nuts shown in the illustration while aligning the alignment marks of the No. 3 engine mount and nuts.
      • If the alignment marks are not aligned, align the alignment marks while slightly moving the engine and temporarily tighten the nuts.

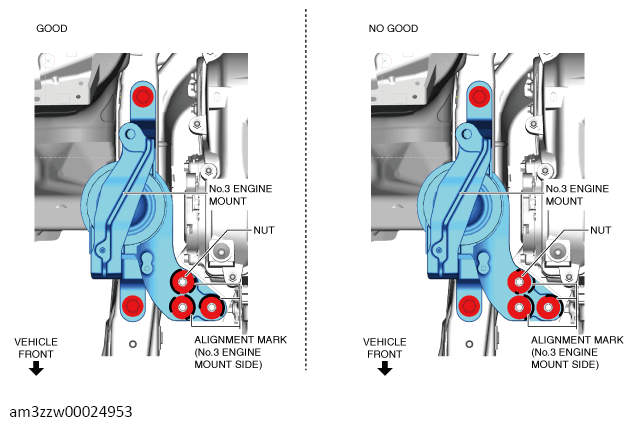

      G13556451Courtesy of MAZDA MOTORS CORP.
  3. Tighten the No. 3 engine mount installation bolts and nuts in the order shown in the illustration.

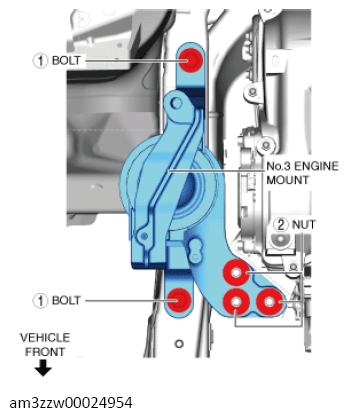

    G13556452Courtesy of MAZDA MOTORS CORP.
  4. Remove the engine lifter or garage jack.
  5. Install in the reverse order of removal.
