No. 1 engine mount installation note (2WD)

WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.
  1. Tighten the No. 1 engine mount bracket installation bolts in the order shown in the illustration.

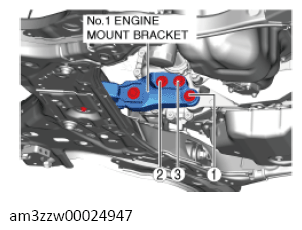

    Fig 1: No. 1 Engine Mount Bracket Bolts Tightening Sequence (2WD)
    G13556438Courtesy of MAZDA MOTORS CORP.
  2. Temporarily tighten the No. 1 engine mount rubber installation bolts in the order shown in the illustration.
    Fig 2: No. 1 Engine Mount Rubber Bolts Tightening Sequence (2WD)
    G13556439Courtesy of MAZDA MOTORS CORP.
  3. Tighten the No. 1 engine mount rubber installation bolts in the order shown in the illustration.
    Fig 3: No. 1 Engine Mount Rubber Bolts Tightening Sequence (2WD)
    G13556440Courtesy of MAZDA MOTORS CORP.
