Exhaust Manifold Bracket No. 1 Removal Note

WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.

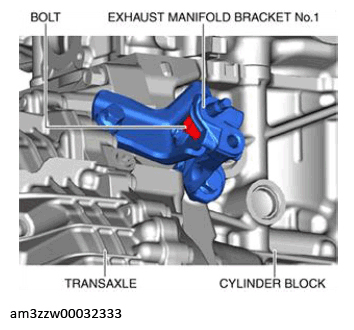

Loosen the bolt shown in the illustration.

Courtesy of MAZDA MOTORS CORP.
Remove the bolts in the order shown in the illustration, then remove the exhaust manifold bracket No. 1.

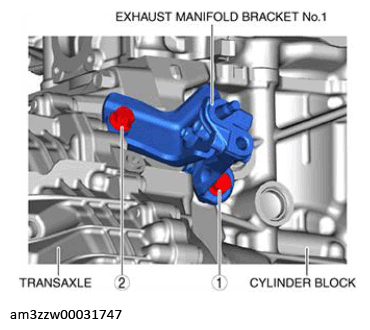

Fig 1: Exhaust Manifold Bracket No. 1, Transaxle, Cylinder Block And Bolts Loosening Sequence
Courtesy of MAZDA MOTORS CORP.

Exhaust Manifold Bracket Installation Note (2WD)

Temporarily tighten the exhaust manifold bracket installation bolts.
Tighten the bolt in the order shown in the illustration.

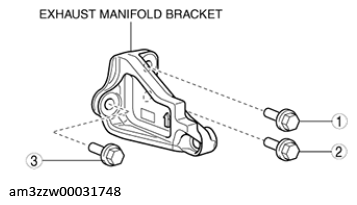

Fig 2: Exhaust Manifold Bracket Bolts Tightening Sequence (2WD)
Courtesy of MAZDA MOTORS CORP.
