Exhaust Manifold Bracket No. 1 Installation Note

WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.

Temporarily tighten the exhaust manifold bracket No. 1 installation bolts in the order shown in the illustration.

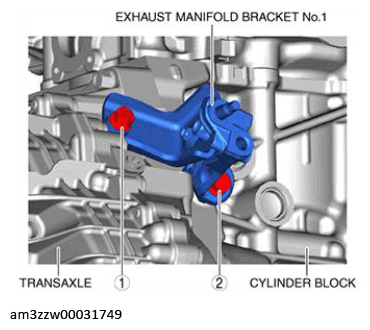

Fig 1: Exhaust Manifold Bracket No. 1, Transaxle, Cylinder Block And Bolts Tightening Sequence
Courtesy of MAZDA MOTORS CORP.
Loosen the bolt shown in the illustration until it is no longer seated on the surface.

Courtesy of MAZDA MOTORS CORP.
Tighten the bolts in the order shown in the illustration.

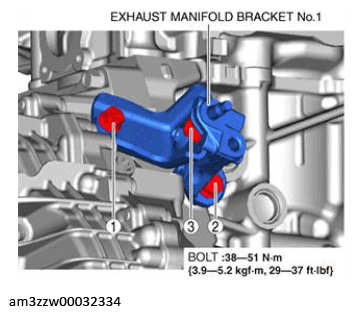

Fig 2: Exhaust Manifold Bracket No. 1 Bolts With Torque Specification
Courtesy of MAZDA MOTORS CORP.
