Camshaft Removal Note

WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.
  1. Loosen the camshaft cap installation bolts in a few passes in the order shown in the illustration and remove the camshaft caps.

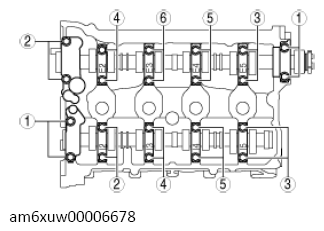

    Fig 1: Camshaft Caps Bolts Loosening Sequence
    G13556333Courtesy of MAZDA MOTORS CORP.
  2. Remove the camshafts.
