Side Bearing Disassembly Note
WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
- Mark or otherwise distinguish between the left and right side bearings so that they are not mixed up at the time of reassembly.

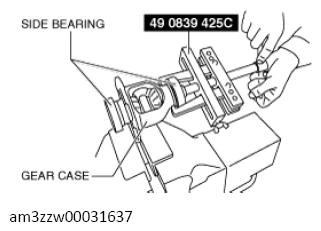

- Remove the side bearing inner races from the gear case using the SST.
