Rear Cover Disassembly Note

WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.

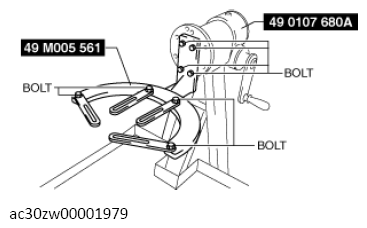

  1. Install the SSTs to the engine stand.
    G13558076Courtesy of MAZDA MOTORS CORP.

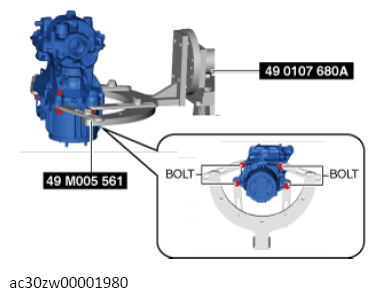

  2. Install the rear differential to the SSTs.
    G13558077Courtesy of MAZDA MOTORS CORP.
  3. Remove the rear cover.
