Bearing Outer Race Disassembly Note

WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.

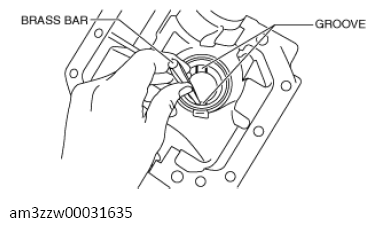

  1. Remove the bearing outer races using the 2 grooves in the carrier and alternately tapping the sides of the races with a brass bar.
G13558082Courtesy of MAZDA MOTORS CORP.
