Thrust washer Assembly Note

WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.

Assemble the side gears, thrust washers and pinion gears to the gear case, then assemble the knock pin.
After assembling the knock pin, make a crimp so that the pin will not come out of the gear case.

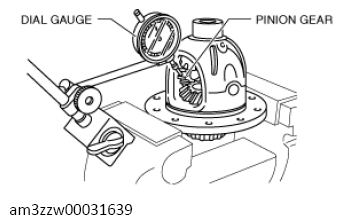

Set a dial gauge to the pinion gear as indicated in the illustration.

Courtesy of MAZDA MOTORS CORP.
Secure one of the side gears.

Move the pinion gear and measure the backlash at the end of the pinion gear.

If the backlash exceeds the standard, use the thrust washers to adjust.

Rear differential backlash of pinion gear and side gear

0.1 mm {0.004 in} or less

Thrust washer thickness

Identification mark	Thickness
9	0.90 mm {0.035 in}
95	0.95 mm {0.037 in}
0	1.00 mm {0.0394 in}
05	1.05 mm {0.0413 in}
1	1.10 mm {0.0433 in}
