Oil Seal (Coupling Component) Replacement
WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.
Special Service Tool (SST)
| 49 W034 201 Dust boot installer |
- Drain the differential oil into a container. (See DIFFERENTIAL OIL REPLACEMENT .)
- Remove the coupling component. (See COUPLING COMPONENT REMOVAL/INSTALLATION (US) .)

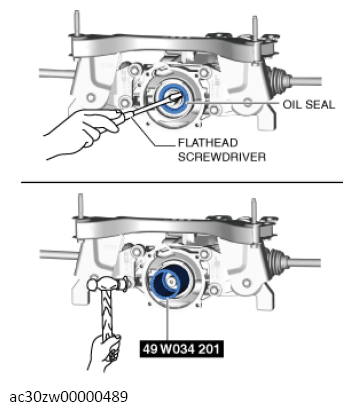

- Remove the oil seal from the differential carrier using a flathead screwdriver or similar tool.
- Apply differential oil to the new oil seal lip.
- Install the new oil seal to the differential carrier using the SST.NOTE:
- Install the oil seal at a straight angle.
- Install the coupling component. (See COUPLING COMPONENT REMOVAL/INSTALLATION (US) .)
- Add the specified differential oil from the filler plug. (See DIFFERENTIAL OIL REPLACEMENT .)
