Differential Oil Inspection

WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.

Replacement Part

Washer

Quantity: 1

Location of use: Filler plug

Oil and Chemical Type

Rear differential oil

MAZDA LONG LIFE HYPOID GEAR OIL SG1

Place the vehicle on level ground.
Remove the filler plug and washer.

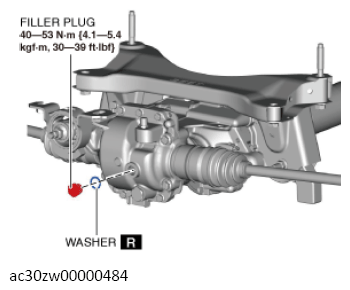

Fig 1: Filler Plug, Washer And Bolt With Torque Specification
Courtesy of MAZDA MOTORS CORP.
Verify that the oil is at the brim of the filler plug hole.

If it is low, add the specified oil. (See DIFFERENTIAL OIL REPLACEMENT .)

Rear differential oil type	Rear differential oil capacity (approx. quantity)
MAZDA LONG LIFE HYPOID GEAR OIL SG1	0.35 L {0.37 US qt, 0.31 Imp qt}

Install a new washer and the filler plug, and tighten.
