Differential Oil Temperature Sensor Removal/Installation
WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
- Do not perform the procedure when the differential oil is at a high temperature. Otherwise, it could cause severe burns.
- Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION (US) .)

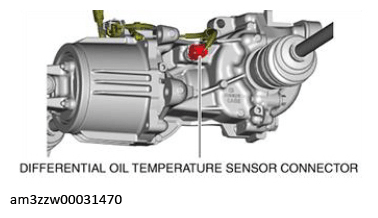

- Disconnect the differential oil temperature sensor connector.

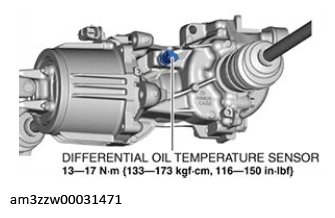

- Remove the differential oil temperature sensor.
- Install the differential oil temperature sensor.
- Connect the differential oil temperature sensor connector.
- Connect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION (US) .)
