Coupling Component Temperature Sensor Inspection

WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION (US) .)
Disconnect the AWD solenoid connector.

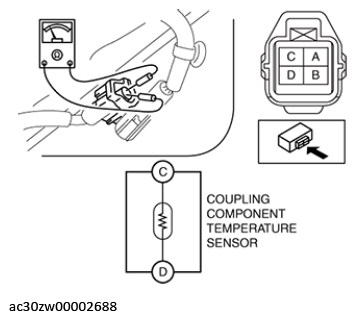

Measure resistance between AWD solenoid terminals C and D.

Courtesy of MAZDA MOTORS CORP.

If the resistance is not within the specification, replace the coupling component. (See COUPLING COMPONENT REMOVAL/INSTALLATION (US) .)

Specification

6.085-6.961 kilohms (Temperature at 20°C {68°F})
