Assembly of Wiring Harness to Wire Clip Note
WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.

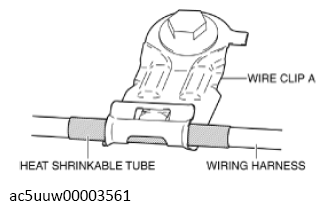

- Secure the heat shrinkable tube on the wiring harness to wire clip A.
 Courtesy of MAZDA MOTORS CORP.
|
- Secure the wiring harness to wire clip B so that the band on the wiring harness is positioned to the position shown in the illustration.
 Courtesy of MAZDA MOTORS CORP.
|
