DTC B10FE-11, B10FE-13, B10FE-87 Or B10FE-96: Passenger-Side Side Air Bag Sensor (Airbag) (Us): Outline

WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.

DTC B10FE:11, B10FE:13, B10FE:87 OR B10FE:96 [SAS CONTROL MODULE] DETECTION CONDITION AND POSSIBLE CAUSE

System malfunction location	B10FE:11: Passenger-side side air bag sensor circuit short to body ground or power supply B10FE:13: Passenger-side side air bag sensor circuit open circuit or resistance high or short to power supply B10FE:87: Signal reception error from passenger-side side air bag sensor B10FE:96: Passenger-side side air bag sensor internal malfunction
Detection condition	WARNING: Detection conditions are for understanding the DTC outline before performing an inspection. Performing an inspection according to only the detection conditions may cause injury due to an operating error, or damage the system. When performing an inspection, always follow the inspection procedure. Wiring harness between the passenger-side side air bag sensor and SAS control module has a malfunction Passenger-side side air bag sensor has a malfunction
Fail-safe	Not applicable

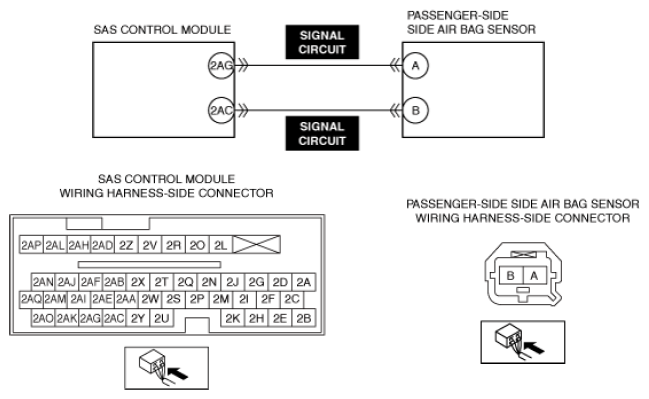

Possible cause	Passenger-side side air bag sensor connector malfunction Open circuit in passenger-side side air bag sensor signal circuit Short circuit to ground in passenger-side side air bag sensor signal circuit Short circuit to power supply in passenger-side side air bag sensor signal circuit Passenger-side side air bag sensor malfunction SAS control module malfunction
Courtesy of MAZDA MOTORS CORP.
