DTC B10FD-11, B10FD-13, B10FD-87 Or B10FD-96: Driver-Side Side Air Bag Sensor (Airbag) (Us): Outline

WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.

DTC B10FD:11, B10FD:13, B10FD:87 OR B10FD:96 [SAS CONTROL MODULE] DETECTION CONDITION AND POSSIBLE CAUSE

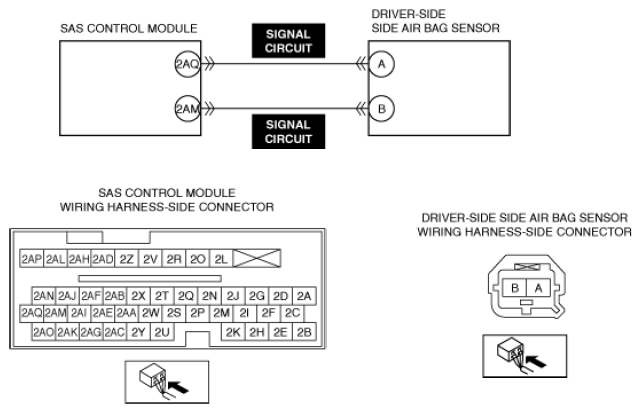

System malfunction location	B10FD:11: Driver-side side air bag sensor circuit short to body ground or power supply B10FD:13: Driver-side side air bag sensor circuit open circuit or resistance high or short to power supply B10FD:87: Signal reception error from driver-side side air bag sensor B10FD:96: Driver-side side air bag sensor internal malfunction
Detection condition	WARNING: Detection conditions are for understanding the DTC outline before performing an inspection. Performing an inspection according to only the detection conditions may cause injury due to an operating error, or damage the system. When performing an inspection, always follow the inspection procedure. Wiring harness between the driver-side side air bag sensor and SAS control module has a malfunction Driver-side side air bag sensor has a malfunction
Fail-safe	Not applicable
Possible cause	Driver-side side air bag sensor connector malfunction Open circuit in driver-side side air bag sensor signal circuit Short circuit to ground in driver-side side air bag sensor signal circuit Short circuit to power supply in driver-side side air bag sensor signal circuit Driver-side side air bag sensor malfunction SAS control module malfunction
Courtesy of MAZDA MOTORS CORP.
