DTC B00B5-11, B00B5-12, B00B5-13 Or B00B5-1D: Seat Track Position Sensor Circuit (Airbag) (Us): Outline

WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.

DTC B00B5:11 (AIRBAG) (US) DETECTION CONDITION AND POSSIBLE CAUSE

System malfunction location	B00B5:11: Seat track position sensor circuit short to body ground B00B5:12: Seat track position sensor circuit short to power supply B00B5:13: Seat track position sensor circuit open B00B5:1D: Seat track position sensor circuit current out of range

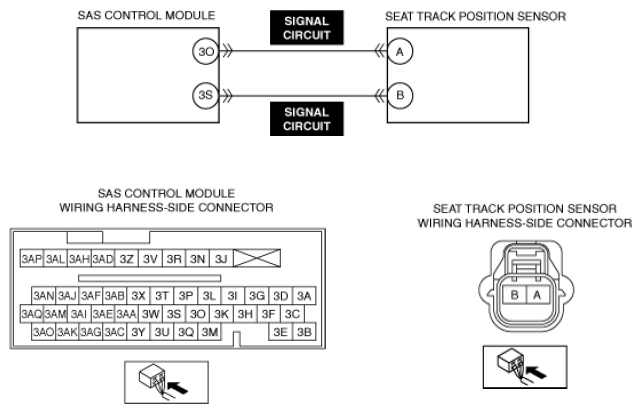

Detection condition	WARNING: Detection conditions are for understanding the DTC outline before performing an inspection. Performing an inspection according to only the detection conditions may cause injury due to an operating error, or damage the system. When performing an inspection, always follow the inspection procedure. Seat track position sensor has a malfunction Wiring harness between the seat track position sensor and SAS control module has a malfunction
Fail-safe	Not applicable
Possible cause	Seat track position sensor connector malfunction Open circuit in seat track position sensor signal circuit Short circuit to body ground in seat track position sensor signal circuit Short circuit to power supply in seat track position sensor signal circuit Seat track position sensor malfunction SAS control module malfunction
Courtesy of MAZDA MOTORS CORP.
