DTC B0001-11, B0001-12, B0001-13, B0001-19 Or B0001-1A: Driver-Side Air Bag Module (Inflator No. 1) Circuit (Airbag) (Us): Outline
WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.
DTC B0001:11 OR B0001:1A [SAS CONTROL MODULE] DETECTION CONDITION AND POSSIBLE CAUSE
| System malfunction location |
B0001:11: Driver-side air bag module (inflator No. 1) circuit short to body ground
B0001:12: Driver-side air bag module (inflator No. 1) circuit short to power supply
B0001:13: Driver-side air bag module (inflator No. 1) circuit open circuit or resistance high
B0001:19: Short circuit to driver-side air bag module (inflator No. 1) and other air bag module circuits
B0001:1A: Driver-side air bag module (inflator No. 1) circuit resistance low |
| Detection condition |
WARNING:
- Detection conditions are for understanding the DTC outline before performing an inspection. Performing an inspection according to only the detection conditions may cause injury due to an operating error, or damage the system. When performing an inspection, always follow the inspection procedure.
- Resistance other than 0.99-6.42 ohms detected in driver-side air bag module (inflator No. 1) circuit
- Wiring harness between driver-side air bag module (inflator No. 1) and SAS control module has malfunction
|
| Fail-safe |
|
| Possible cause |
- Clock spring connector malfunction
- Clock spring malfunction
- Open circuit in driver-side air bag module (inflator No. 1) deployment signal circuit
- Short circuit to body ground in driver-side air bag module (inflator No. 1) deployment signal circuit
- Short circuit to power supply in driver-side air bag module (inflator No. 1) deployment signal circuit
- Short circuit to each other in driver-side air bag module (inflator No. 1) deployment signal circuit
- Short circuit to other air bag module circuits in driver-side air bag module (inflator No. 1) deployment signal circuit
- Driver-side air bag module (inflator No. 1) malfunction
- SAS control module malfunction
|

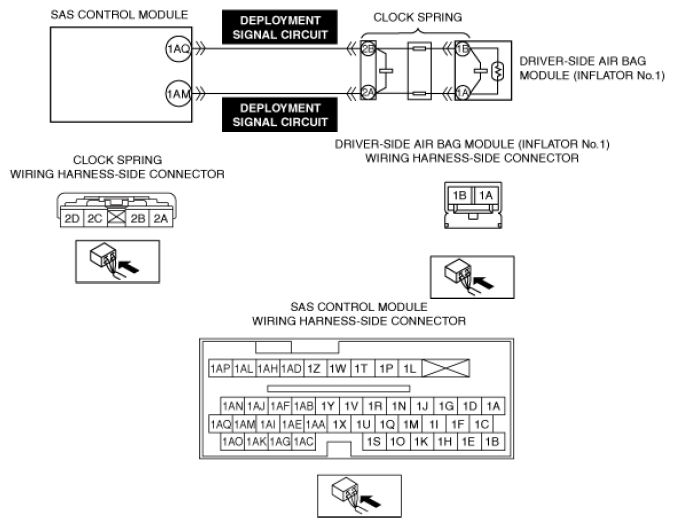

 Courtesy of MAZDA MOTORS CORP.
|
