Up Switch: Notes

WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION (US) .)

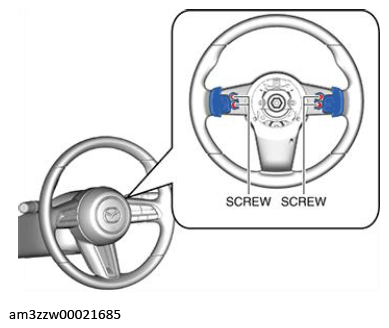

  2. Remove the screw.
    G13176961Courtesy of MAZDA MOTORS CORP.

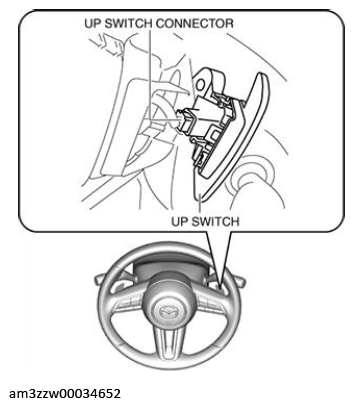

  3. Disconnect the up switch connector.
    G13176962Courtesy of MAZDA MOTORS CORP.
  4. Remove the column cover. (See COLUMN COVER REMOVAL/INSTALLATION .)
  5. Verify that the continuity between up switch component terminals A and B.
G13558648Courtesy of MAZDA MOTORS CORP.
