Automatic Transaxle Location Index
WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of MAZDA MOTORS CORP.
|

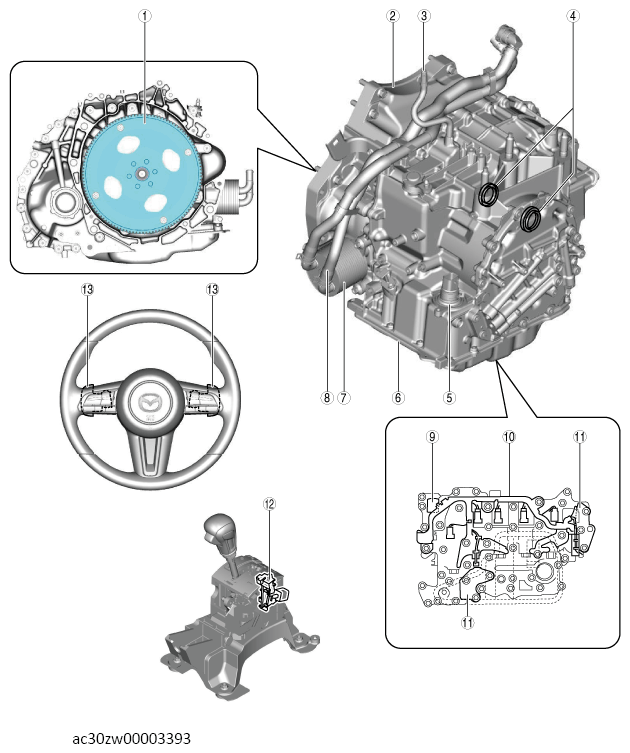

COMPONENT DESCRIPTION
| 1 |
Drive plate
(See DRIVE PLATE REMOVAL/INSTALLATION [ET6A-EL, ET6AX-EL (US)] .) |
| 2 |
Automatic transaxle
(See MECHANICAL SYSTEM TEST [ET6A-EL, ET6AX-EL (US)] .)
(See ROAD TEST [ET6A-EL, ET6AX-EL (US)] .)
(See AUTOMATIC TRANSAXLE FLUID (ATF) INSPECTION [ET6A-EL, ET6AX-EL (US)] .)
(See AUTOMATIC TRANSAXLE FLUID (ATF) REPLACEMENT [ET6A-EL, ET6AX-EL (US)] .)
(See AUTOMATIC TRANSAXLE FLUID (ATF) ADJUSTMENT [ET6A-EL, ET6AX-EL (US)] .)
(See AUTOMATIC TRANSAXLE REMOVAL/INSTALLATION [ET6A-EL (SKYACTIV-G 2.0, SKYACTIV-6 2.5) (US)] .)
(See AUTOMATIC TRANSAXLE REMOVAL/INSTALLATION [ET6AX-EL (SKYACTIV-G 2.0, SKYACTIV-G 2.5 (US))] .)
(See INITIAL LEARNING [ET6A-EL, ET6AX-EL (US)] .)
(See TCM CONFIGURATION [ET6A-EL, ET6AX-EL] .) |
| 3 |
Breather hose
(See AUTOMATIC TRANSAXLE REMOVAL/INSTALLATION [ET6A-EL (SKYACTIV-G 2.0, SKYACTIV-G 2.5) (US)] .)
(See AUTOMATIC TRANSAXLE REMOVAL/INSTALLATION [ET6AX-EL (SKYACTIV-G 2.0, SKYACTIV-G 2.5 (US))] .) |
| 4 |
Oil seal (differential)
(See OIL SEAL (DIFFERENTIAL) REPLACEMENT [ET6A-EL, ET6AX-EL] .) |
| 5 |
Oil seal (control valve body)
(See OIL SEAL (CONTROL VALVE BODY) REPLACEMENT [ET6A-EL, ET6AX-EL (US)] .) |
| 6 |
Control valve body
(See CONTROL VALVE BODY REMOVAL/INSTALLATION [ET6A-EL, ET6AX-EL (US)] .)
(See TCM CONFIGURATION [ET6A-EL, ET6AX-EL] .) |
| 7 |
Oil cooler
(See OIL COOLER REMOVAL/INSTALLATION [ET6A-EL, ET6AX-EL (SKYACTIV-G 2.0, SKYACTIV-G 2.5)] .) |
| 8 |
Water hose
(See OIL COOLER REMOVAL/INSTALLATION [ET6A-EL, ET6AX-EL (SKYACTIV-G 2.0, SKYACTIV-G 2.5)] .) |
| 9 |
ON/OFF solenoid
(See ON/OFF SOLENOID REMOVAL/INSTALLATION [ET6A-EL, ET6AX-EL (US)] .) |
| 10 |
Coupler component
(See COUPLER COMPONENT REMOVAL/INSTALLATION [ET6A-EL, ET6AX-EL (US)] .) |
| 11 |
Oil pressure switch
(See OIL PRESSURE SWITCH REMOVAL/INSTALLATION [ET6A-EL, ET6AX-EL (US)] .) |
| 12 |
M position switch/ up switch/ down switch
(See M POSITION SWITCH INSPECTION [ET6A-EL, ET6AX-EL] .)
(See M POSITION SWITCH REMOVAL/INSTALLATION [ET6A-EL, ET6AX-EL] .)
(See UP SWITCH INSPECTION [ET6A-EL, ET6AX-EL] .)
(See UP SWITCH REMOVAL/INSTALLATION [ET6A-EL, ET6AX-EL] .)
(See DOWN SWITCH INSPECTION [ET6A-EL, ET6AX-EL] .)
(See DOWN SWITCH REMOVAL/INSTALLATION [ET6A-EL, ET6AX-EL] .) |
| 13 |
Steering shift switch
(See STEERING SHIFT SWITCH INSPECTION [ET6A-EL, ET6AX-EL] .)
(See STEERING SHIFT SWITCH REMOVAL/INSTALLATION [ET6A-EL, ET6AX-EL] .) |
