Tie-Rod End Replacement (Us): Removal

WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.

Remove the wheel and tire. (See WHEEL AND TIRE REMOVAL/INSTALLATION .)

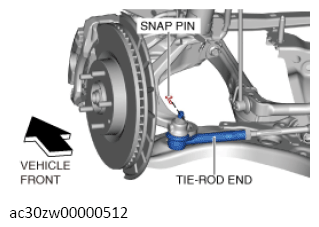

Remove the snap pin from the tie-rod end.

Courtesy of MAZDA MOTORS CORP.

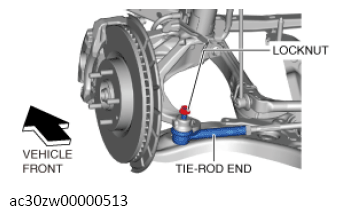

Loosen the locknut of the tie-rod end.

Courtesy of MAZDA MOTORS CORP.

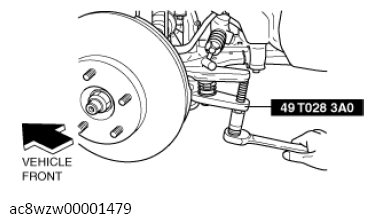

Detach the tie-rod end from the steering knuckle using the SST.

Courtesy of MAZDA MOTORS CORP.

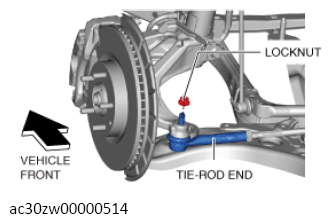

Remove the locknut of the tie-rod end.

Courtesy of MAZDA MOTORS CORP.
Place alignment marks as shown in the illustration for reference in tie-rod end assembly.

Fig 1: Tie-Rod End Assembly With Torque Specification
Courtesy of MAZDA MOTORS CORP.
Remove the tie-rod end.

Courtesy of MAZDA MOTORS CORP.
