Tie-Rod End Replacement (Us): Installation

WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.

Place alignment marks on the new tie-rod end in the same positions as the removed tie-rod end.

Courtesy of MAZDA MOTORS CORP.
Align the marks that were made before removing the tie-rod end, and assemble the tie-rod end to the tie rod.

Fig 1: Tie-Rod End With Torque Specification
Courtesy of MAZDA MOTORS CORP.
Verify that dimension A shown in the illustration is within the standard.

Courtesy of MAZDA MOTORS CORP.

Standard

2.2-15.2 mm {0.087-0.598 in}
- If not within the standard, make adjustments so that dimension A is within the standard.
Install the tie-rod end to the steering knuckle.

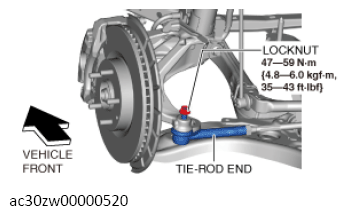

Fig 2: Tie-Rod End To Steering Knuckle Locknut With Torque Specification
Courtesy of MAZDA MOTORS CORP.

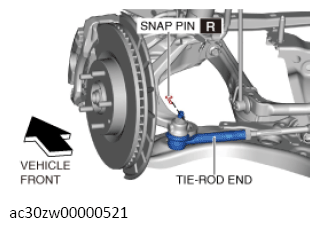

Install a new snap pin.

Courtesy of MAZDA MOTORS CORP.
Install the wheel and tire. (See WHEEL AND TIRE REMOVAL/INSTALLATION .)

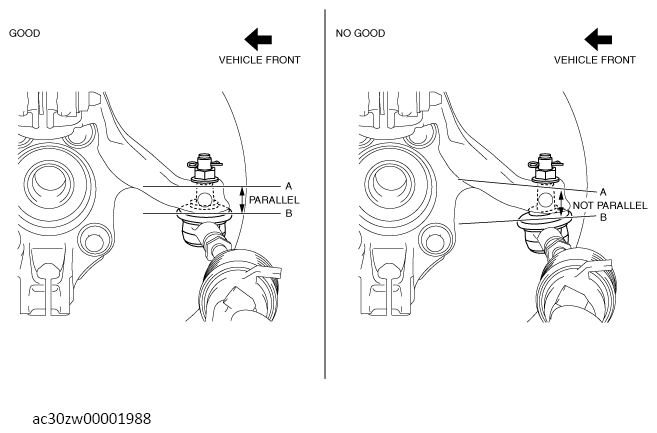

Verify that A and B shown in the illustration are parallel while the vehicle is on the ground.

Courtesy of MAZDA MOTORS CORP.
CAUTION:
- Install the tie-rod end to the correct position. Otherwise, it could cause cracks on the tie-rod end boot.
- If the installation position is not correct, perform the adjustment using the following procedure.

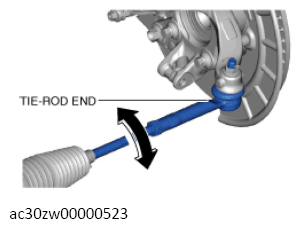

1. Adjust the tie-rod end by rotating it so that it is at the correct position.
Courtesy of MAZDA MOTORS CORP.
After installation, inspect the front wheel alignment. (See FRONT WHEEL ALIGNMENT (US) .)
