Intermediate Shaft Removal Note

WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.
  1. Lock the adjuster lever.
    G13558974Courtesy of MAZDA MOTORS CORP.

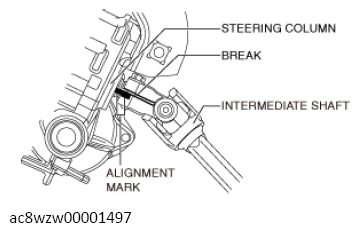

  2. Place an alignment mark across the break between the steering column and the yoke for the intermediate shaft as shown in the illustration.
    G13558978Courtesy of MAZDA MOTORS CORP.
  3. Remove the joint bolt.
    G13558979Courtesy of MAZDA MOTORS CORP.
  4. Remove the intermediate shaft from the steering column.
