Bracket Installation Note (MTX)
WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.

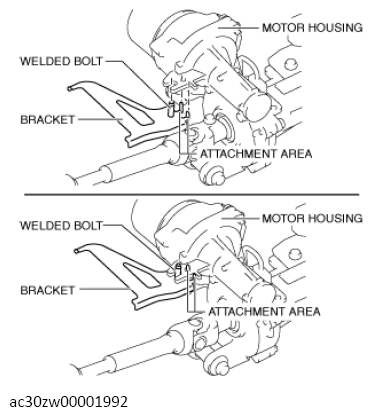

- While inserting the attachment areas of the bracket into the motor housing holes, insert the welded bolt of the bracket into the concavity in the motor housing.
 Courtesy of MAZDA MOTORS CORP.
|

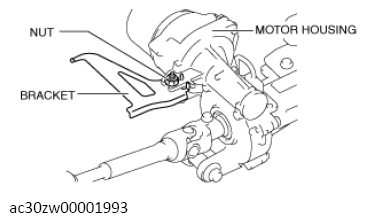

- With the installation surface of the bracket contacting the motor housing, tighten the installation nut to the specified torque.
 Courtesy of MAZDA MOTORS CORP.
|
