Steering Gear and Linkage Removal Note

WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.

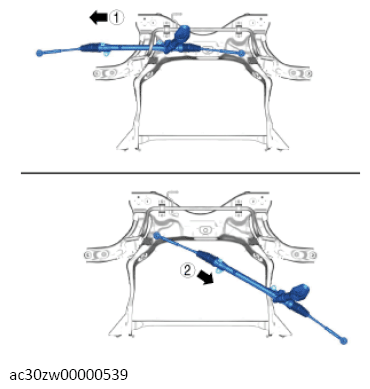

  1. Move the steering gear and linkage in the direction of the arrow in the order shown in the illustration and remove it.
G13558962Courtesy of MAZDA MOTORS CORP.
