Steering Gear and Linkage Installation Bolt Installation Note

WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.
  1. Temporarily tighten the steering gear and linkage installation bolts.

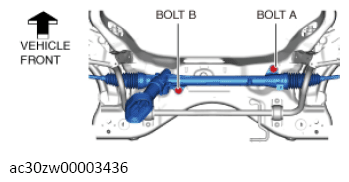

    G13558963Courtesy of MAZDA MOTORS CORP.
  2. Tighten bolt A.
  3. Tighten bolt B.
