Intermediate Shaft Removal Note

WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.

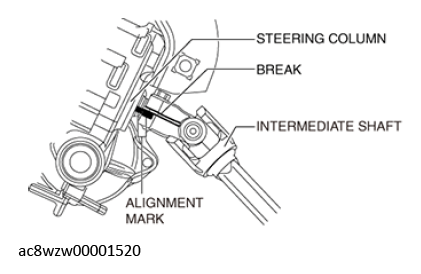

Place an alignment mark across the break between the steering column and the yoke for the intermediate shaft as shown in the illustration.

Courtesy of MAZDA MOTORS CORP.
Place alignment marks on the steering gear (pinion) and intermediate shaft as shown in the illustration.

Courtesy of MAZDA MOTORS CORP.
Remove the joint bolts in the order of joint bolts A and B.

Courtesy of MAZDA MOTORS CORP.
Remove the intermediate shaft.
