Exhaust Manifold Insulator Removal Note

WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the insulator as shown in the illustration.

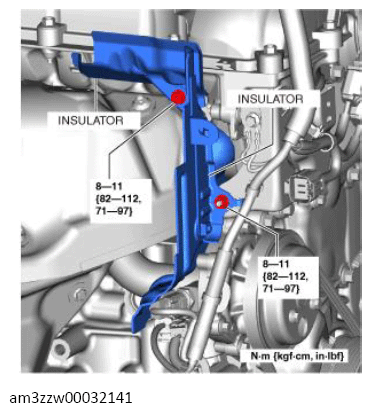

    Fig 1: Insulator Bolts With Torque Specification (AWD)
    G13557338Courtesy of MAZDA MOTORS CORP.
  2. Remove the exhaust manifold insulator.
