DTC B1B38-49: Front Ultrasonic Sensor (RH) Signal Circuit Malfunction [Vehicle Control Module]: Outline
WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.
DTC B1B38:49 (VEHICLE CONTROL MODULE) DETECTION CONDITION AND POSSIBLE CAUSE
| System malfunction location |

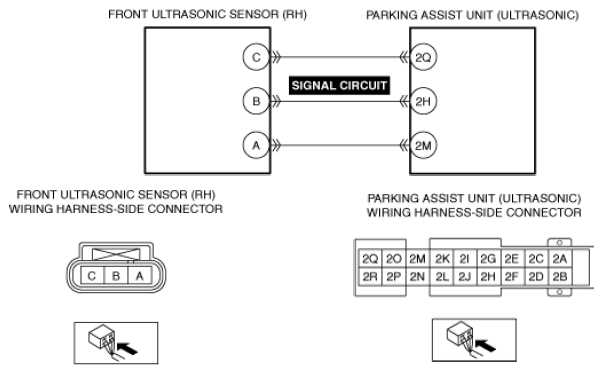

Front ultrasonic sensor (RH) signal circuit malfunction |
| Detection condition |
- The vehicle control module (VCM) detects that the parking assist unit (ultrasonic) determined that there is a malfunction in the front ultrasonic sensor (RH) signal circuit for 11 s.
|
| Fail-safe |
(See DTC TABLE [VEHICLE CONTROL MODULE (US)]
.) |
| Possible cause |
- Front bumper malfunction
- Front ultrasonic sensor (RH) connector or terminal malfunction
- Parking assist unit (ultrasonic) connector or terminal malfunction
- Short to ground in front ultrasonic sensor (RH) signal circuit
- Short to power supply in front ultrasonic sensor (RH) signal circuit
- Open circuit in front ultrasonic sensor (RH) signal circuit
- Front ultrasonic sensor (RH) malfunction
- Parking assist unit (ultrasonic) malfunction
|
 Courtesy of MAZDA MOTORS CORP.
|
