DTC P025D-00: Fuel Pump Control Module Result Of On-Board Diagnostic Test High Input: Outline
WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.

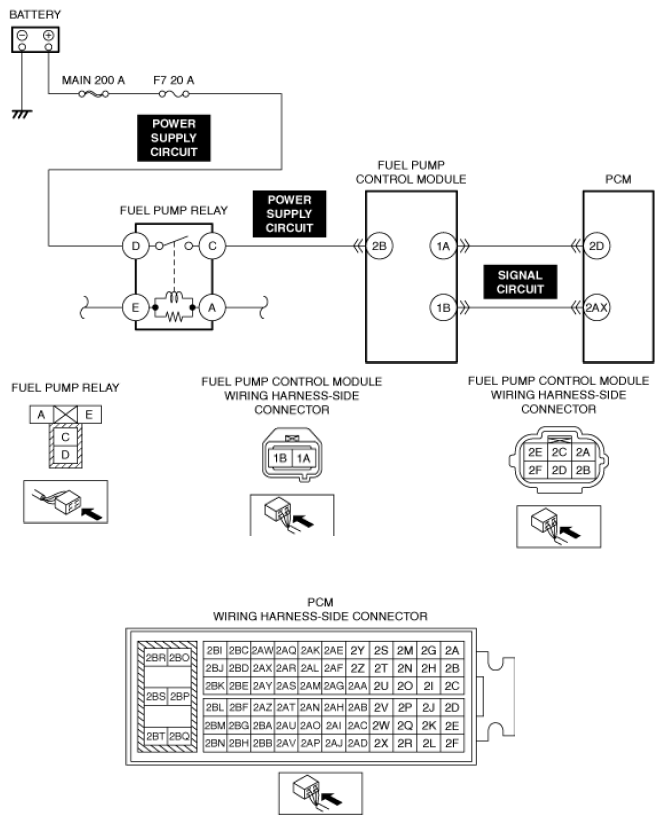

DTC P025D:00 (PCM, SKYACTIV-G) DETECTION CONDITION AND POSSIBLE CAUSE
| System malfunction location |
Fuel pump control module result of on-board diagnostic test high input |
| Detection condition |
- Result of on-board test cannot be received from fuel pump control module (voltage is too high).
|
| Fail-safe |
|
| Possible cause |
- Fuel pump control module connector or terminals malfunction
- PCM connector or terminals malfunction
- Short to power supply in fuel pump control module signal circuit
- Open circuit in fuel pump control module signal circuit
- Fuel pump control module malfunction
- Short to ground in fuel pump control module power supply circuit
- Short to power supply in fuel pump control module power supply circuit
- Open circuit in fuel pump control module power supply circuit
- Fuel pump relay malfunction
- Short to ground or open circuit in fuel pump relay power supply circuit
- PCM malfunction
|
 Courtesy of MAZDA MOTORS CORP.
|
