Function Explanation (DTC Detection Outline)
WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.

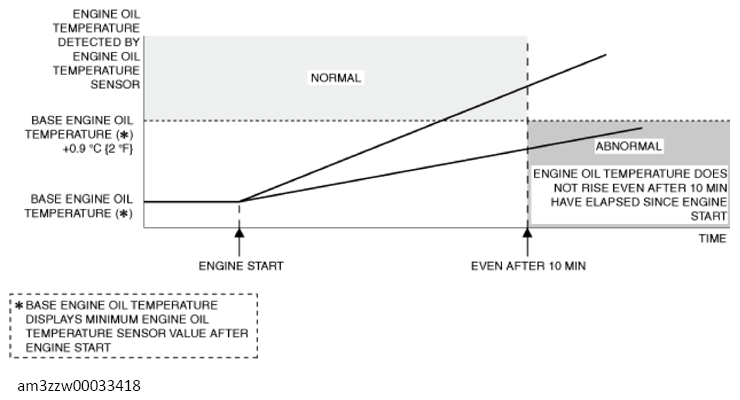

- If the engine oil temperature detected by the engine oil temperature sensor is not rising 0.9°C {2°F} or more during a10 min period after the engine is started, the PCM determines an engine oil temperature sensor malfunction and stores a DTC.
