Function Explanation (DTC Detection Outline)
WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.

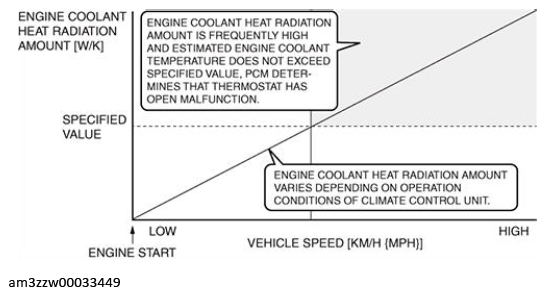

- The PCM calculates the estimated engine coolant temperature based on the vehicle speed, engine coolant heat radiation amount and the operation conditions of the climate control unit. If the malfunction determination condition repeats 3 times, the engine coolant heat radiation amount is frequently high, and the estimated engine coolant temperature does not exceed specified value, the PCM determines that the thermostat has a malfunction and stores a DTC.
