DTC U3003-68: Power Supply System [DSC HU/Cm]: Outline

WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.

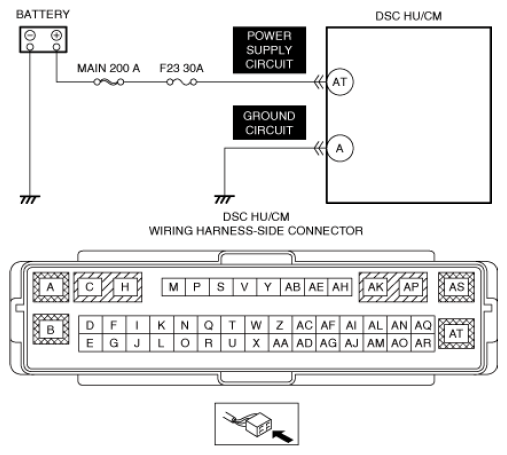

System malfunction location	Power supply system
Detection condition	The DSC HU/CM shuts down while the electric parking brake motor gear unit is operating.
Fail-safe	Refer to "DTC Table" and "Fail-safe Function Malfunction Contents Table". (See DTC TABLE [DSC HU/CM (US)] .)
Possible cause	DTCs are stored in the PCM. Battery malfunction Generator malfunction DSC HU/CM connector or terminals malfunction Short to ground or open circuit in DSC HU/CM power supply circuit Open circuit in DSC HU/CM ground circuit DSC HU/CM malfunction
Courtesy of MAZDA MOTORS CORP.
