DTC C2006-07: Mechanical Problem Of Electric Parking Brake Motor Gear Unit (LH) [DSC HU/Cm]: Outline

WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.

System malfunction location	Mechanical problem of electric parking brake motor gear unit (LH)
Detection condition	The DSC HU/CM detects that the electricity consumed by the circuit until the operation control or release control of the electric parking brake motor gear unit (LH) is completed is the specification or more.
Fail-safe	Refer to "DTC Table" and "Fail-safe Function Malfunction Contents Table". (See DTC TABLE [DSC HU/CM (US)] .)

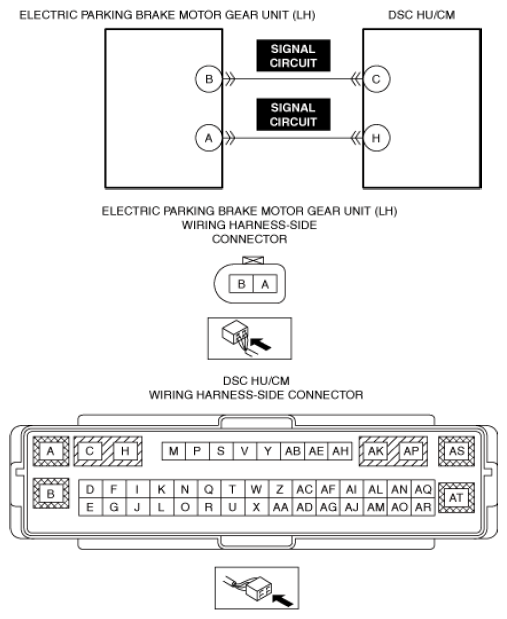

Possible cause	Electric parking brake motor gear unit (LH) connector or terminal malfunction DSC HU/CM connector or terminals malfunction Open circuit in electric parking brake motor gear unit (LH) signal circuit Electric parking brake motor gear unit (LH) malfunction DSC HU/CM malfunction
Courtesy of MAZDA MOTORS CORP.
