DTC C2005-0A: Electric Parking Brake Motor Gear Unit (RH) [DSC HU/Cm]: Outline
WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.
| System malfunction location |
Electric parking brake motor gear unit (RH) |
| Detection condition |
- The DSC HU/CM detects that the voltage applied to the electric parking brake motor gear unit (RH) circuit is outside of the specification or the flowing current cannot be measured.
|
| Fail-safe |
Refer to "DTC Table" and "Fail-safe Function Malfunction Contents Table". (See DTC TABLE [DSC HU/CM (US)] .) |
| Possible cause |
- Electric parking brake motor gear unit (RH) connector or terminal malfunction
- DSC HU/CM connector or terminals malfunction

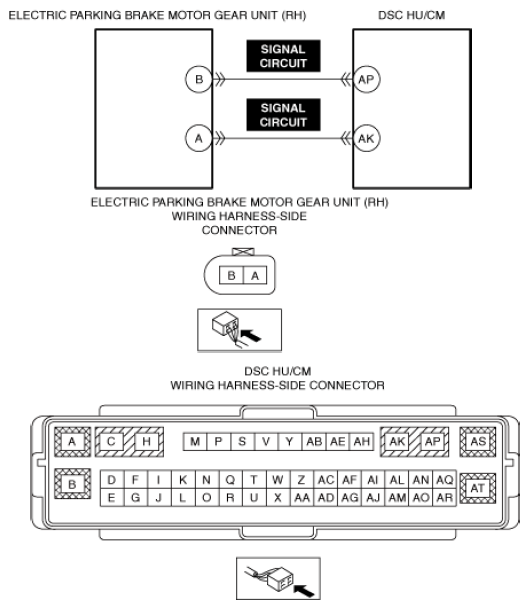

- Short to ground in electric parking brake motor gear unit (RH) signal circuit
- Short to power supply in electric parking brake motor gear unit (RH) signal circuit
- Open circuit in electric parking brake motor gear unit (RH) signal circuit
- Electric parking brake motor gear unit (RH) malfunction
- DSC HU/CM malfunction
|
 Courtesy of MAZDA MOTORS CORP.
|
