Auto-dimming Outer Mirror Inspection
WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION (US) .)
- Disconnect the power outer mirror connector. (See POWER OUTER MIRROR REMOVAL/INSTALLATION .)

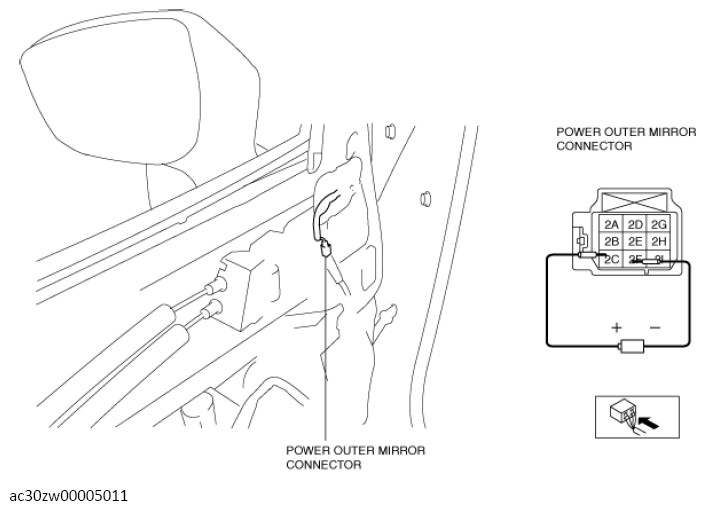

- Connect the power outer mirror connector terminal 2C to a dry cell battery's plus (+) terminal (1. 2 V) and terminal 2F to its minus terminal.

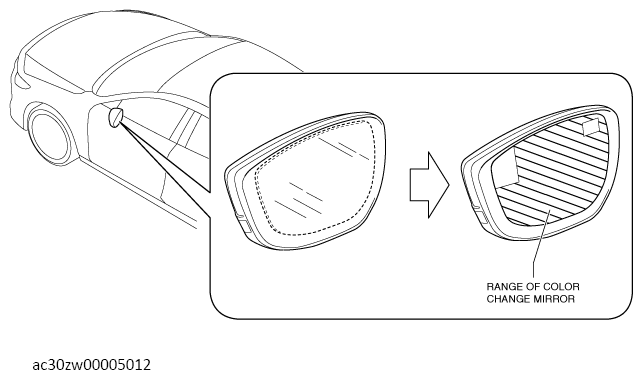

- Verify that the mirror side of the outer mirror glass changes color.
- If there is any malfunction, inspect the outer mirror glass. (See OUTER MIRROR GLASS INSPECTION .)
- If there is no malfunction in the outer mirror glass, replace the power outer mirror. (See POWER OUTER MIRROR REMOVAL/INSTALLATION .)
