DTC P0808-00: Clutch Stroke Sensor Circuit High Input (Us): Outline
WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.
DTC P0808:00 (PCM, SKYACTIV-G, US) DETECTION CONDITION AND POSSIBLE CAUSE
| System malfunction location |
Clutch stroke sensor circuit high input |
| Detection condition |
- The output voltage of the clutch stroke sensor is more than 4.76 V for a continuous 5 s.
Precondition
- Battery voltage: 8-16 V
- Switch the ignition ON (engine off or on)
|
| Fail-safe |
|
| Possible cause |
- Clutch stroke sensor incorrect installation
- Clutch stroke sensor connector or terminals malfunction
- PCM connector or terminals malfunction

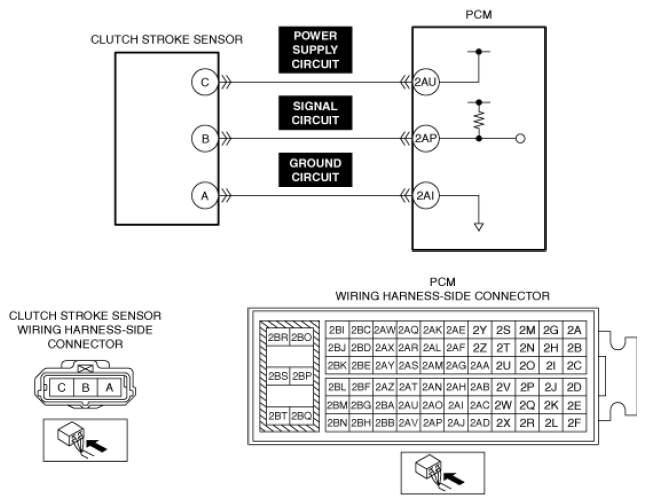

- Short to power supply in any of the following clutch stroke sensor circuits.
- Short circuit in clutch stroke sensor power supply circuit and signal circuit
- Open circuit in clutch stroke sensor ground circuit
- Clutch stroke sensor malfunction
- PCM malfunction
|
 Courtesy of MAZDA MOTORS CORP.
|
